plummer block HCP 205
SKU: HCP 205
Manufacturer: KBS
HCP 205, Stehlager mit Exzenterring HCP, KBS, Panta Shop
Manufacturer: KBS
HCP 205, Stehlager mit Exzenterring HCP, KBS, Panta Shop
| Quantity | Price per Unit | |
|---|---|---|
| 19% VAT excluded | 19% VAT included | |
| 1-3 | 11,39 € | 13,55 € |
| 4-9 | 10,58 € | 12,59 € |
| 10-19 | 9,66 € | 11,50 € |
| from 20 | 9,09 € | 10,82 € |
13,55 €
Total amount: 13,55 €
Availability: Available
delivery time: 1-3 days
Other countries
For 25 mm Shaft diameter
It can be used in agricultural machines, construction machinery, conveyor plants, hydraulic jacks, home and industry.
Table with dimensions in mm

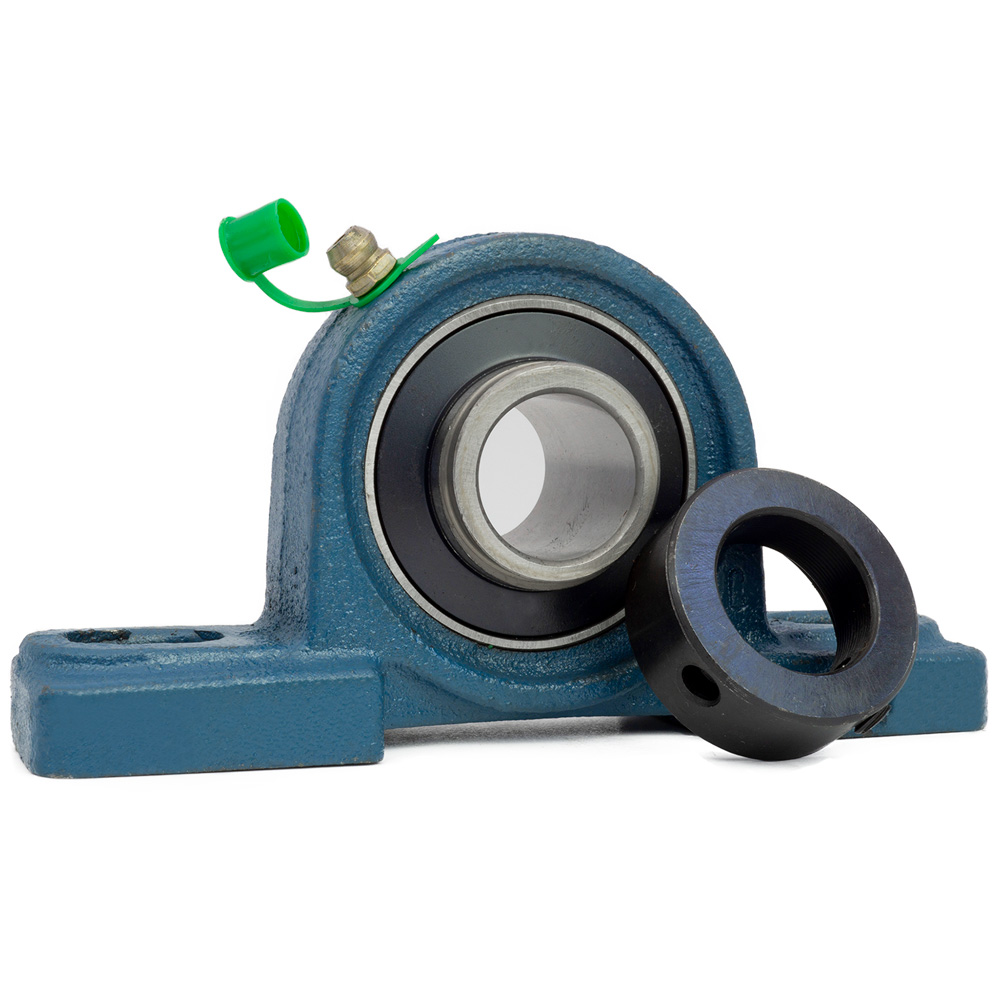

The bearing HCP 205
consists of unit HC 205 (YEL or UEL) and a grey cast iron plummer block housing P 205 with lubricating nipple. Shaft mounting by eccentric ring.
It can be used in agricultural machines, construction machinery, conveyor plants, hydraulic jacks, home and industry.

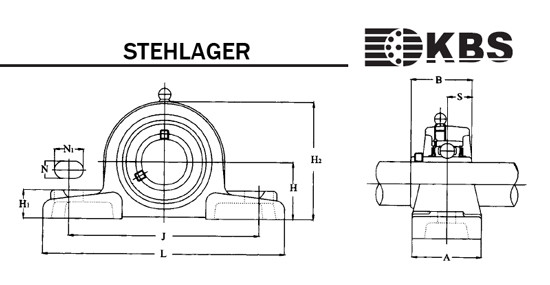

Table with dimensions in mm
| d | L | A | J | H1 | H | N | N1 | H2 | B | S | Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 140 | 38 | 105 | 16 | 36,5 | 13 | 19 | 70 | 44,4 | 14,3 | 0,82 |
 |
 |
Staffelpreise verfügbar! ab 4 Stück: 12,59 € | ab 10 Stück: 11,50 € | ab 20 Stück: 10,82 € |
