flange bearing SSUCF 212 stainless steel housing and bearing insert
flange bearing SSUCF 201 stainless steel housing and bearing insert
flange bearing SSUCF 210 stainless steel housing and bearing insert
SKU: SSUCF 210
Manufacturer: KBS
SSUCF 210, Flange bearings SSUCF (stainless steel, complete, rectangular, 4-hole), KBS, Panta Shop
Manufacturer: KBS
SSUCF 210, Flange bearings SSUCF (stainless steel, complete, rectangular, 4-hole), KBS, Panta Shop
| Quantity | Price per Unit | |
|---|---|---|
| 19% VAT excluded | 19% VAT included | |
| from | ||
Availability: Available
delivery time: 1-3 days
Other countries
For 50 mm Shaft diameter

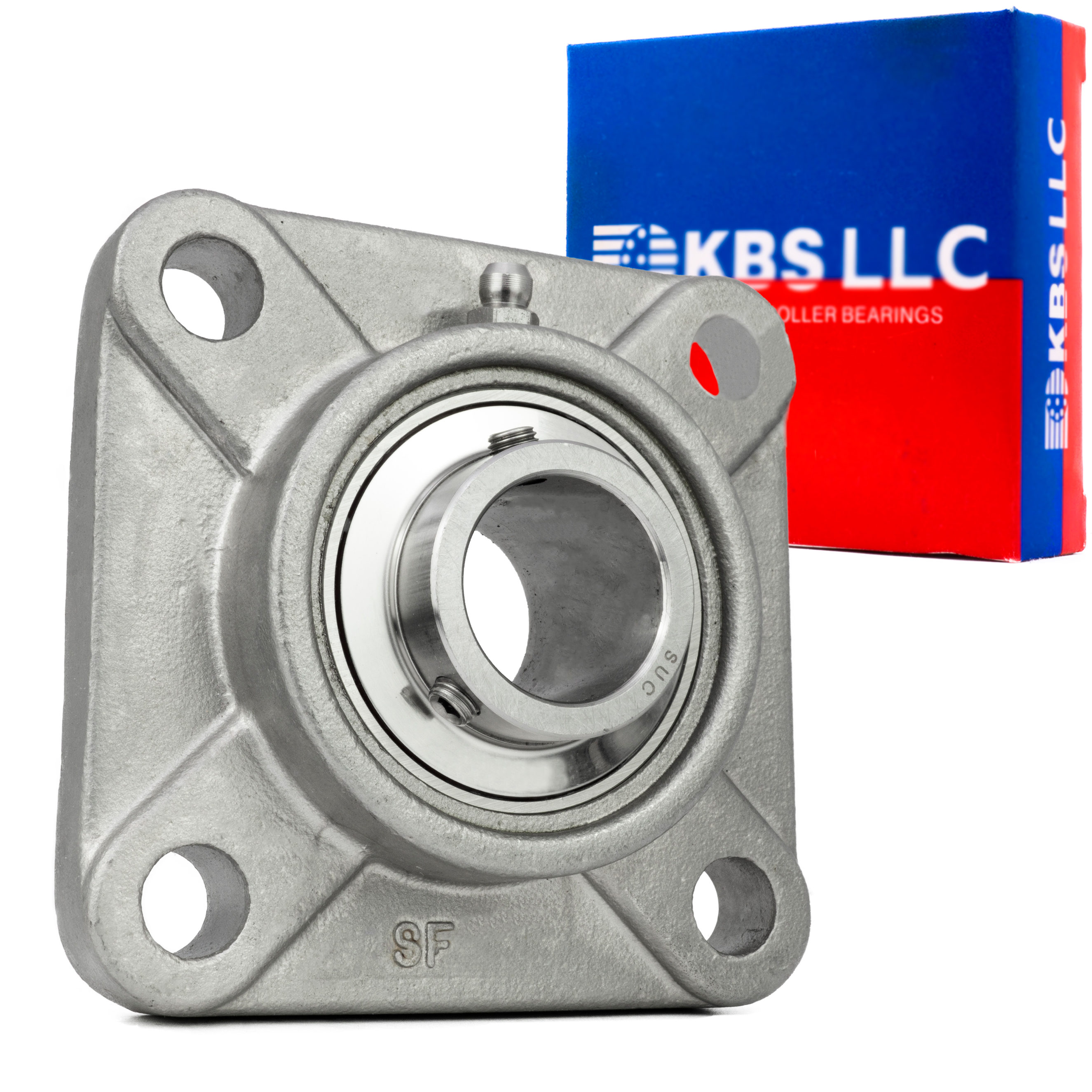

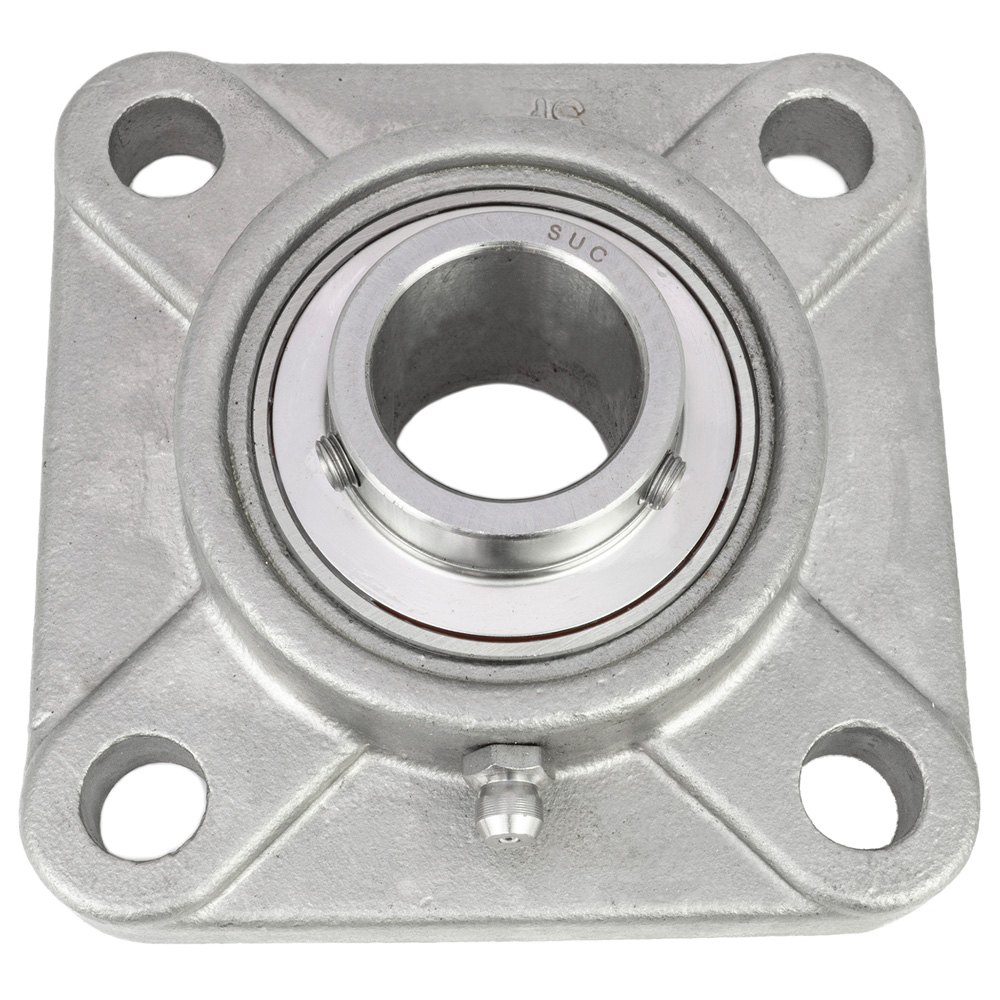

The bearing SSUCF 210
flange bearing consist of a UC 210 stainless steel bearing and a PF 210 stainless steel case. Shaft mounting by threaded pins.
It can be used in agricultural machines, construction machinery, conveyor plants, hydraulic jacks, home and industry.
Due to the increased resistance against cleaning chemicals and salt water, stainless steel and stainless steel / thermoplastic housing bearings are especially suited to be used in the food & beverages industry, washing systems and similar applications.
Table with dimensions in mm
The bearing SSUCF 210
flange bearing consist of a UC 210 stainless steel bearing and a PF 210 stainless steel case. Shaft mounting by threaded pins.
It can be used in agricultural machines, construction machinery, conveyor plants, hydraulic jacks, home and industry.
Due to the increased resistance against cleaning chemicals and salt water, stainless steel and stainless steel / thermoplastic housing bearings are especially suited to be used in the food & beverages industry, washing systems and similar applications.
Table with dimensions in mm
| d | L | A | J | A1 | A2 | N | A3 | B | S | Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 143 | 40 | 111 | 18 | 22 | 16 | 54,6 | 51,6 | 19 | 2,6 |
 |
 |
