flange bearing SAPF 208 with eccentric collar, steel plate housing
flange bearing SAPF 201 with eccentric collar, steel plate housing
flange bearing SAPF 207 with eccentric collar, steel plate housing
SKU: SAPF 207
Manufacturer: KBS
SAPF 207, Flange bearings SAPF (tin, round, 3-hole), KBS, Panta Shop
Manufacturer: KBS
SAPF 207, Flange bearings SAPF (tin, round, 3-hole), KBS, Panta Shop
| Quantity | Price per Unit | |
|---|---|---|
| 19% VAT excluded | 19% VAT included | |
| 1-3 | 11,48 € | 13,66 € |
| 4-9 | 10,33 € | 12,29 € |
| 10-19 | 9,81 € | 11,67 € |
| 20-49 | 9,32 € | 11,09 € |
| from 50 | 8,86 € | 10,54 € |
13,66 €
Total amount: 13,66 €
Availability: Available
delivery time: 1-3 days
Other countries
For 30 mm Shaft diameter

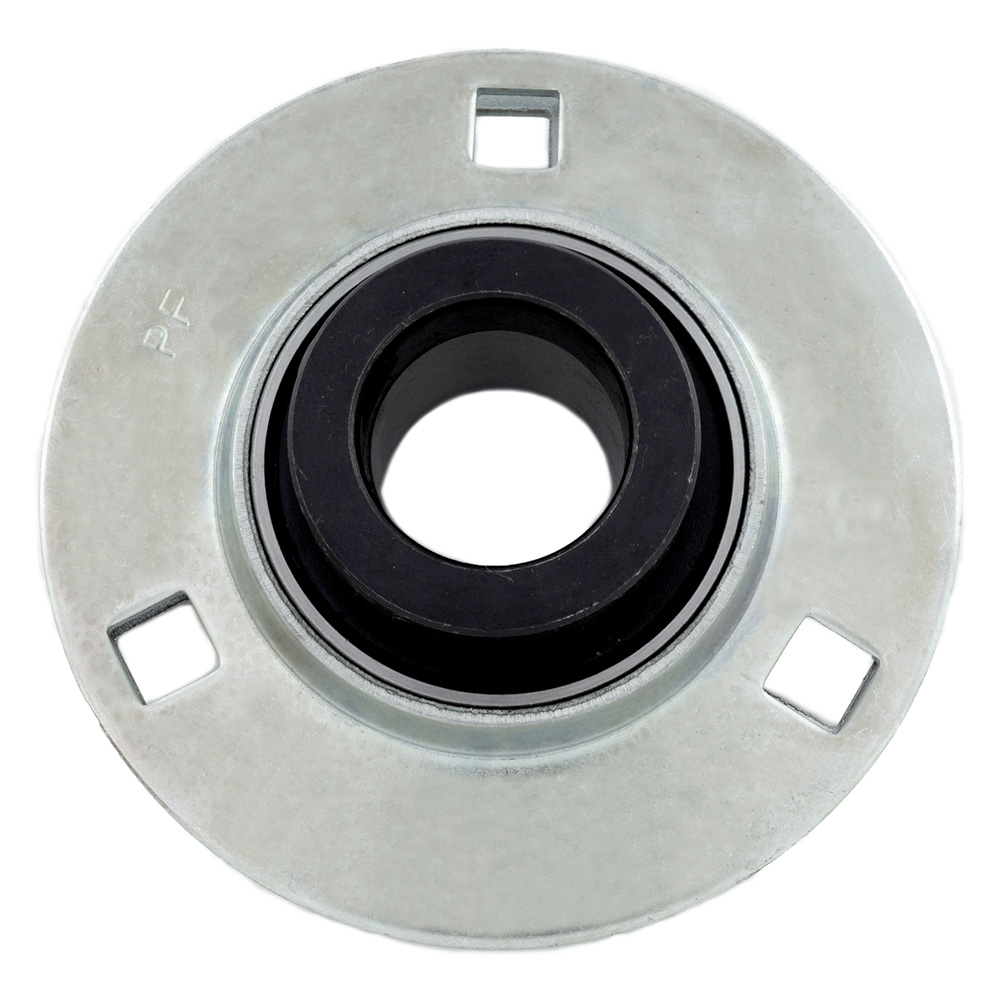

The bearing SAPF 206 flange bearing consist of a SA 206 steel bearing insert and one PF 206 sheet steel housing. Shaft mounting by eccentric.
It can be used in agricultural machines, construction machinery, conveyor plants, hydraulic jacks, home and industry.

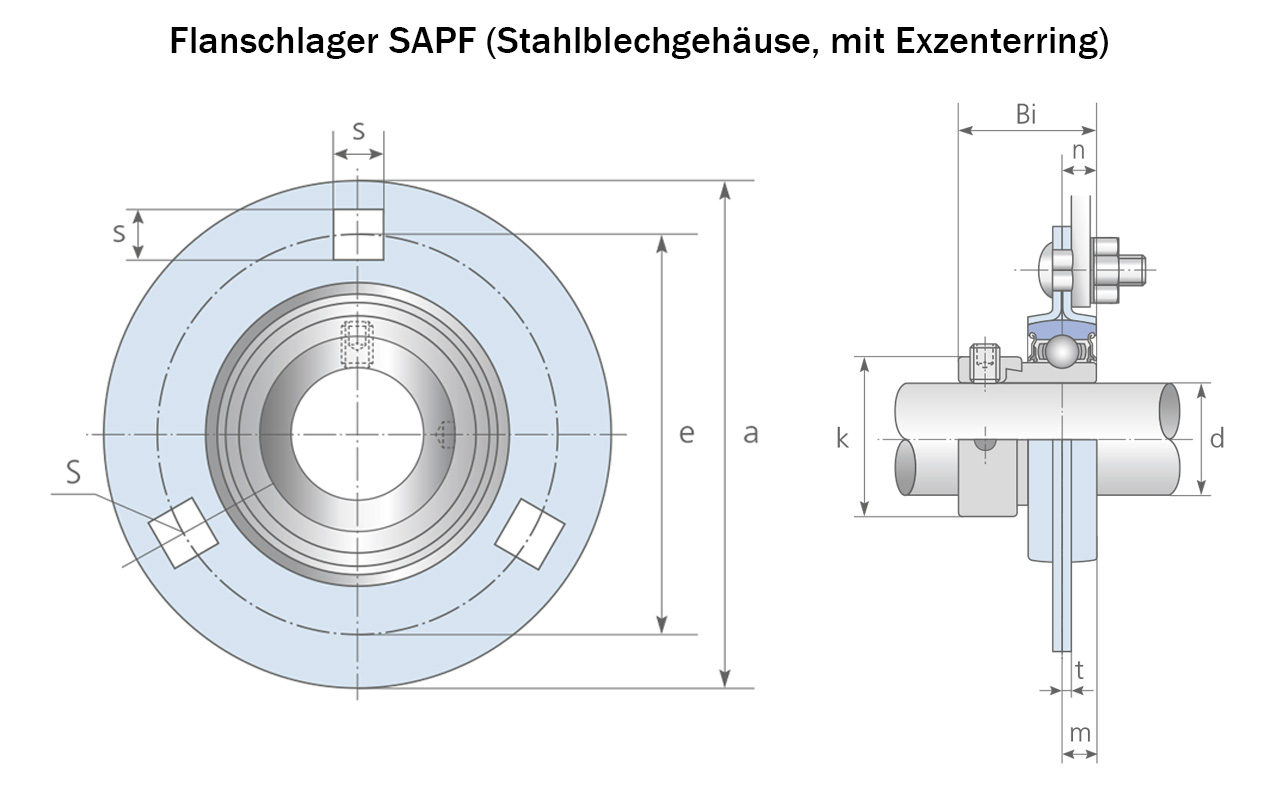

Table with dimensions in mm
The bearing SAPF 206 flange bearing consist of a SA 206 steel bearing insert and one PF 206 sheet steel housing. Shaft mounting by eccentric.
It can be used in agricultural machines, construction machinery, conveyor plants, hydraulic jacks, home and industry.
Table with dimensions in mm
| d | a | e | m | t | s | n | Bi | k | S | Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 113 | 90,5 | 9,5 | 2,6 | 11 | 8 | 30 | 44,5 | M10 | 0,65 |
 |
 |
Staffelpreise verfügbar! ab 4 Stück: 12,29 € | ab 10 Stück: 11,67 € | ab 20 Stück: 11,09 € | ab 50 Stück: 10,54 € |
